Technical specification
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Monitor
|
|
15 inch LED
|
|
|
|
|
|
Display mode
|
B, B+B, B+M, M, 4B, CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI, TSI, etc
|
Gray scale
|
256 level
|
|
|
|
|
|
|
Cine loop
|
|
Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M
|
|
Image storage
|
>50,000 frames
|
|
|
|
|
|
Image/video format
|
AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
|
|
|
|
Scan angle
|
60-160 degrees, depending on probe
|
|
|
|
Scan depth
|
20mm~240mm, depending on probe
|
|
|
|
Dynamic range
|
≥120dB, 4-level adjustable
|
|
|
|
|
Image flip
|
|
Up/down, left/right, black/ white, 90/180/270°
|
|
|
Zoom
|
|
Continuously, real-time dynamic PIP
|
|
|
|
General measurement and calculation
|
Distance, circumference, area, volume, angle, heart rate, time, velocity,
|
residual urine, stenosis ratio, A/B ratio, resistivity index (RI), velocity
|
time integral (VTI), etc.
|
|
|
|
|
Specialty
|
|
General, OB, GYN, vascular, cardiology, urinary, small organ, etc.
|
Notation
|
|
Date, time, name, sex, age, doctor, hospital name, full screen notation
|
Body mark
|
43 types
|
|
|
|
|
|
|

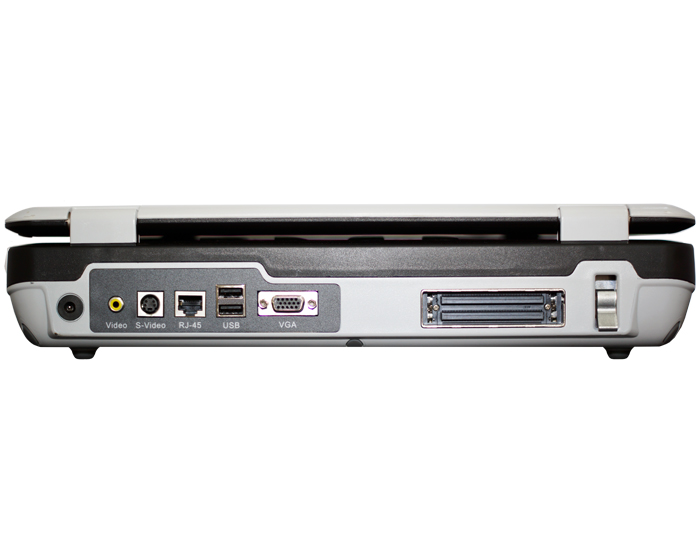

Peripheral port
|
Video, S-video, USB2.0, DICOM3.0, VGA
|
|
|
|
Battery capacity
|
8,000mAh
|
|
|
|
|
|
|
Power consumption
|
75VA
|
|
|
|
|
|
|
Dimension
|
35.6*36.6*7.5 CM
|
|
|
|
|
|
Net weight
|
5kgs
|
|
|
|
|
|
|
